Overview

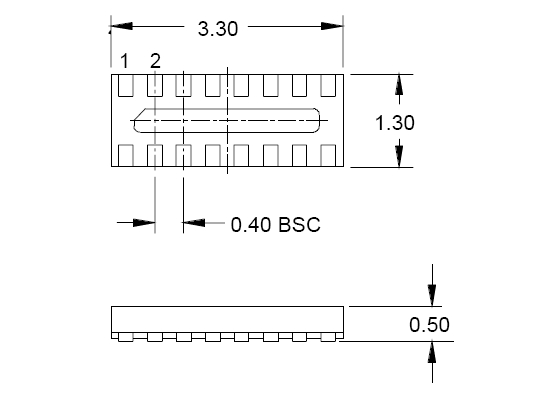

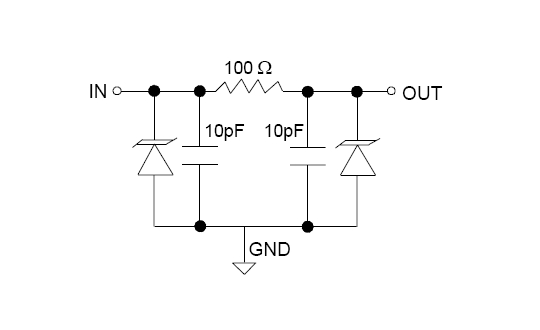

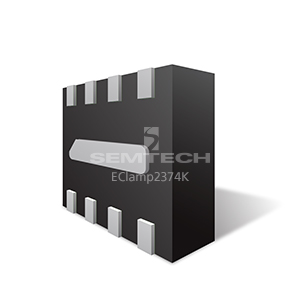

The EClamp®2374K is a low pass filter array with integrated TVS diodes. It is designed to suppress unwanted EMI-RFI signals and provide electrostatic discharge (ESD) protection in portable electronic equipment. This state-of-the-art device utilizes solid-state silicon-avalanche technology for superior clamping performance and DC electrical characteristics. They have been optimized for protection of color LCD panels in cellular phones and other portable electronics.
Features
- Bidirectional EMI/RFI filter with integrated TVS for ESD protection
- ESD protection to IEC 61000-4-2 (ESD) Level 4, ±15kV (air), ±8kV (contact)
- Filter performance: 30dB minimum attenuation 1.8GHz to 2.5GHz
- TVS working voltage: 5V
- Resistor: 100Ω +/− 15%
- Typical Capacitance: 20pF (VR = 0V)
- Protection and filtering for four lines
- Solid-state technology
- Lead Free, RoHS/WEEE compliant
Documents | Release Date | Type | |
---|---|---|---|
ECLAMP2374K Datasheet | 2018-12-14 |
Applications
- Color LCD Protection
- Cell Phone CCD Camera Lines
- Clamshell Cell Phones
