Overview

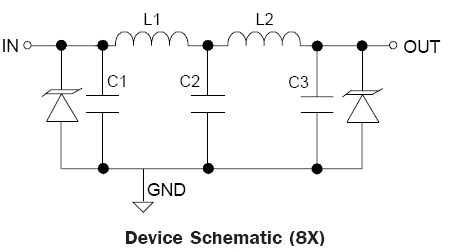

The EClamp®2458P is a low pass (L-C) filter array with integrated TVS diodes. It is designed to suppress unwanted EMI-RFI signals and provide electrostatic discharge (ESD) protection in portable electronic equipment. This state-of-the-art device utilizes solidstate silicon-avalanche technology for superior clamping performance and DC electrical characteristics.
Features
- Bidirectional EMI/RFI filter with integrated TVS for ESD protection
- ESD protection to IEC 61000-4-2 (ESD) Level 4,±15kV (air), ±8kV (contact)
- Filter performance: 40dB minimum attenuation at 800MHz to 2.7GHz
- TVS working voltage: 5V
- Inductor: 28nH (Typical)
- Capacitance: 12pF (Typical at VR = 2.5V)
- Protection and filtering for eight lines
- Solid-state technology
- Lead-Free, RoHS and WEEE Compliant
| Documents | Release Date | Type |  |
|---|---|---|---|
| ECLAMP2458P Datasheet | 2018-12-14 | | |
Applications
- Color LCD Protection
- Cell Phone CCD Camera Lines
- Clamshell Cell Phones
