Overview

The μClamp® series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. It is designed to replace multilayer varistors (MLVs) in portable applications.

Packaging

  • SLP1006P2
  • 3000 pcs. Tape & Reel

Order Codes

  • uClamp0511P.TCT

PB Free/ROHS

Learn More →

Features

  • Transient protection for data lines to
    • IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
    • IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)
    • Cable Discharge Event (CDE)

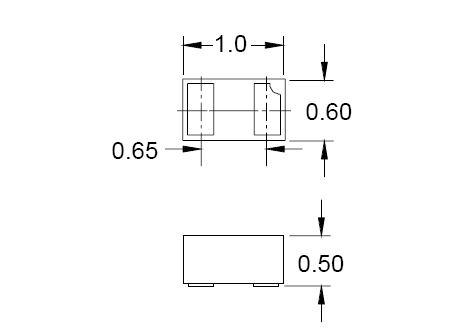

  • Ultra-small package (1.0 x 0.6 x 0.5mm)

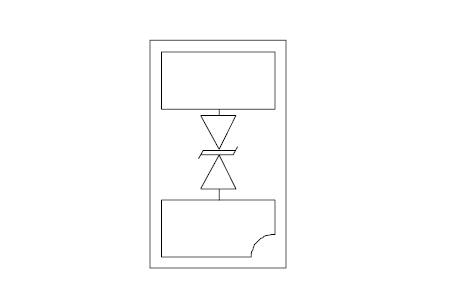

  • Protects one I/O or power line
  • Low clamping voltage
  • Working voltage: ±5V
  • Low leakage current
  • Solid-state silicon-avalanche technology
  • RoHS and WEEE compliant

Applications

  • Cellular Handsets & Accessories
  • Cordless Phones
  • Personal Digital Assistants (PDAs)
  • Notebooks & Handhelds
  • Portable Instrumentation
  • Digital Cameras
  • Peripherals
  • MP3 Players
