Overview
The μClamp series of Transient Voltage Suppressors (TVS) are designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and PDAs.
Packaging

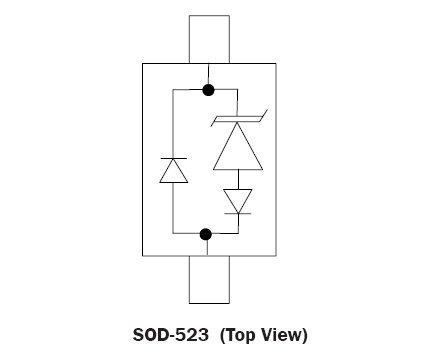

- SOD-523
- Package Minimum Tape & Reel Only
Order Codes
- UCLAMP3301H.TCT
PB Free/ROHS
Learn More →Features
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ± 20kV (air), ± 10kV (contact)
- IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)
- Cable Discharge Event (CDE)

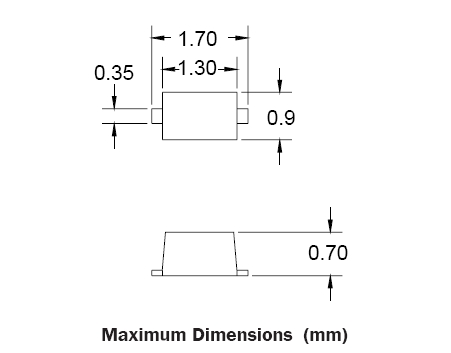

- Ultra-small SOD-523 package (1.7 x 0.9 x 0.7 mm)
- Protects one I/O
- Low clamping voltage
- Working voltage: 3.3V
- Low leakage current
- Solid-state silicon-avalanche technology
- Lead-Free, RoHS and WEEE Compliant
Documents | Release Date | Type | |
---|---|---|---|
UCLAMP3301H Datasheet | 2018-12-21 |
Applications
- Cellular handsets & accessories
- Cordless phones
- Personal digital assistants (PDAs)
- Notebooks & handhelds
- Portable instrumentation
- Digital cameras
- Peripherals
- MP3 players
