Overview
The LC05-6 is designed to protect four high-speed data lines (two differential pairs) from transient over-voltages which result from lightning and ESD.
Packaging

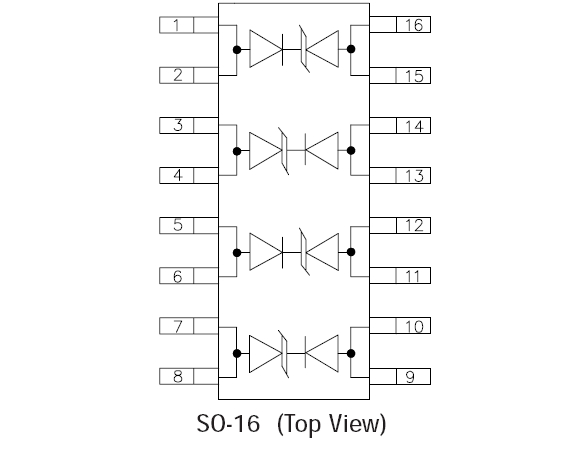

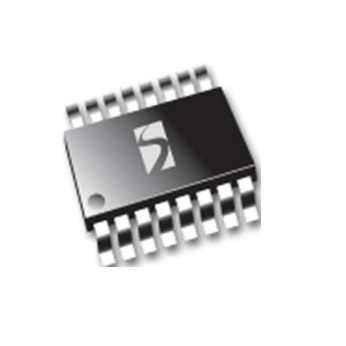

- SO-16
Order Codes
- LC05-6.TBT: Lead-free, RoHS and WEEE compliant, 500 pcs. Tape & Reel
PB Free/ROHS
Learn More →Features
- 6 V working voltage
- Transient protection for high-speed data lines to
- Telcordia (Bellcore) GR 1089 IPP = 100 A (2/10 µs)
- ITU K.20 IPP = 40 A (5/310 µs)
- IEC 61000-4-2 (ESD) < 25 kV
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 100 A (8/20µs)

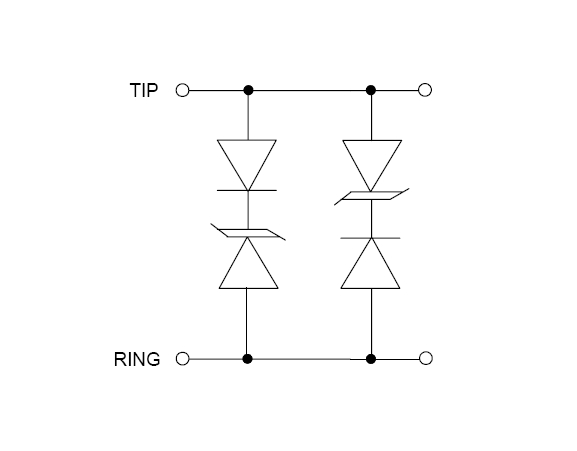

- Protects two tip-and-ring line pairs
- Low capacitance for high-speed interfaces
- High surge capability
- Low clamping voltage
- Solid-state silicon-avalanche technology
| Documents | Release Date | Type |  |
|---|---|---|---|
| LC05-6 Datasheet | 2019-05-25 | | |
Applications
- T1/E1 line cards
- Base stations
- WAN equipment
- CSU/DSU
- Multiplexers
- Routers
- ISP equipment
- Customer premise equipment
