Overview

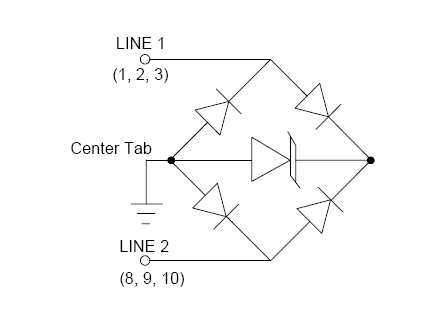

The TClamp3302N is a 3.3V, 2-line low capacitance transient voltage suppressor (TVS) array designed to provide high surge and electrostatic discharge (ESD) immunity on high speed data and telecom interfaces. The TClamp family of TVS arrays is specifically designed to protect telecom and industrial data lines from overvoltage transients caused by ESD, cable discharge events (CDE) and lightning surge.
Packaging

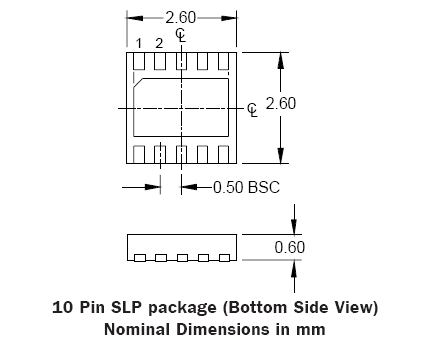

- SLP2626P10
Order Codes
- TClamp3302N.TCT: Lead-free package, fully WEEE and RoHS compliant, tape and reel only.
PB Free/ROHS
Learn More →Features
- Transient protection for high-speed data lines to
- Bellcore 1089 (Intra-Building) 100A (2/10μs)
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning) L5, 95A (8/20μs)
- Low capacitance (12pF line-to-line)
- Low operating voltages (3.3V)
- Low clamping voltage
- Small SLP Package saves board space
- Solid-state technology
| Documents | Release Date | Type |  |
|---|---|---|---|
| TCLAMP3302N Datasheet | 2018-12-14 | | |
Applications
- 10/100/1000 Ethernet
- T3/E3
- Integrated Magnetics
- Carrier Class Equipment
- Customer Premise Equipment
Inventory
| Product | Country | Distributor | Qty | Buy |
|---|
