Overview
Features
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Designed to replace polymer TVS

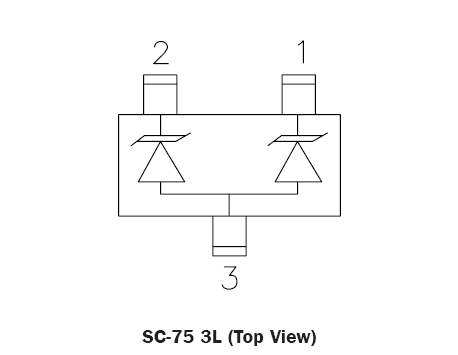

- Protects up to two I/O lines
- Ultra-Low capacitance (<1pF)
- No insertion loss to >3.0GHz

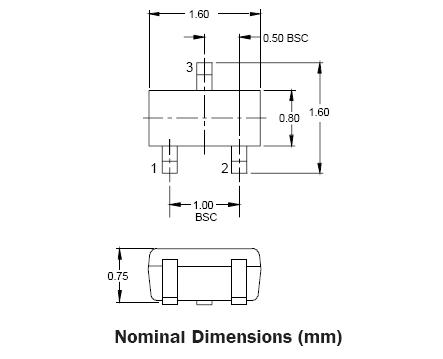

- Low profile (<1mm)
- Low leakage current and clamping voltage
- Low operating voltage: 5.0V
- Solid-state silicon-avalanche technology
| Documents | Release Date | Type |  |
|---|---|---|---|
| RCLAMP0502B Datasheet | 2018-12-14 | | |
Applications
- High-Definition Multimedia Interface (HDMI)
- Mobile Display Digital Interface (MDDI)
- RF/Antenna Circuits
- USB 2.0 & Firewire Ports
- GaAs Photodetector Protection
- HBT Power Amp Protection
- Infiniband Transceiver Protection
Inventory
| Product | Country | Distributor | Qty | Buy |
|---|
