SC657
Product inactive. Information on this page is for reference only.

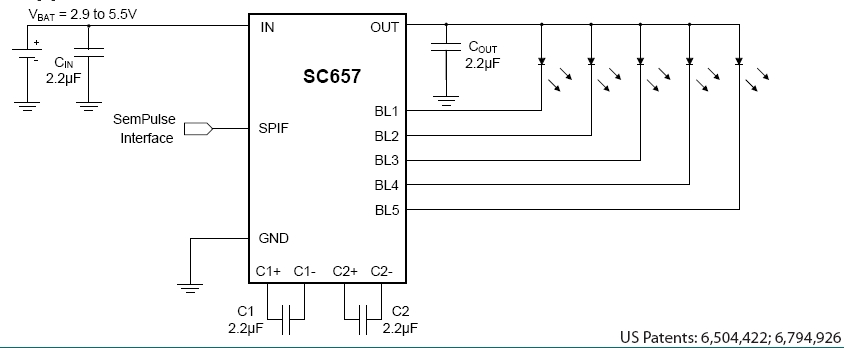

The SC657 is a high efficiency charge pump LED driver using Semtech’s proprietary charge pump technology. Performance is optimized for use in single-cell Li-ion battery applications.
Features
- Input supply voltage range — 2.9V to 5.5V
- Very high efficiency charge pump driver system with three modes — 1x, 1.5x and 2x
- Five programmable current sinks — 0mA to 25mA
- Up to three LED grouping options
- Fade-in/fade-out feature for main LED bank
- Charge pump frequency — 250kHz
- SemPulse® single wire interface
- Backlight current accuracy — ±1.5% typical
- Backlight current matching — ±0.5% typical
- LED float detection
- Automatic sleep mode (LEDs off) — IQ = 60μA (typ.)
- Shutdown current — 0.1μA (typical)
- Ultra-thin package — 2 x 2 x 0.6 (mm)
- Fully WEEE and RoHS compliant
- Cellular phones, smart phones, and PDAs
- LCD modules
- Portable media players
- Digital cameras
- Personal navigation devices
- Display/keypad backlighting and LED indicators
Applications
Packaging
- MLPQ-UT-20 (3 X 3 mm)
Order Codes
- SC657ULTRT: Lead-Free, WEEE and RoHS Compliant, 3000pcs Tape and Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC657
Part Description
BACKLIGHT DRIVER FOR 5 LEDS WITH SEMPULSE INTERFACE
# of leads
14
Package Type
MLPQ-UT
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Declarations and Reports
IPC-1752-2
