SC196
Product is not recommended for new design.
The SC196 is a synchronous step-down converter with integrated power devices designed for use in applications using a single-cell Li-ion battery. Its wide input voltage range also makes it suitable for use in systems with fixed 3.3V or 5V supply rails available.
Features
- Up to 95% efficiency
- V(OUT) adjustable from less than 0.8V to V(IN)
- Output current — 1.5A
- Quiescent current — 17μA
- Input range — 2.5V to 5.5V
- Fixed 1MHz frequency or 750kHz to 1.25MHz synchronized operation
- PSAVE operation to maximize efficiency at light loads
- Fast transient response
- 100% duty cycle in dropout
- Soft-start
- Over-temperature and short-circuit protection

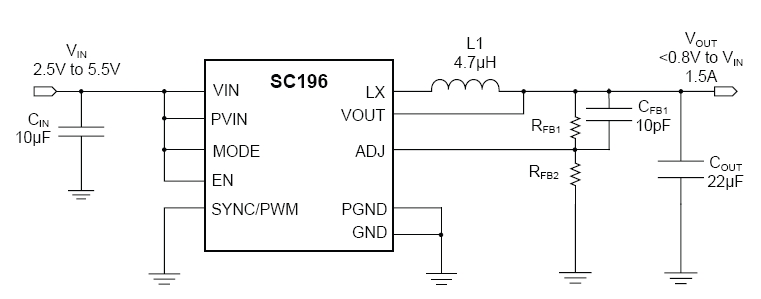

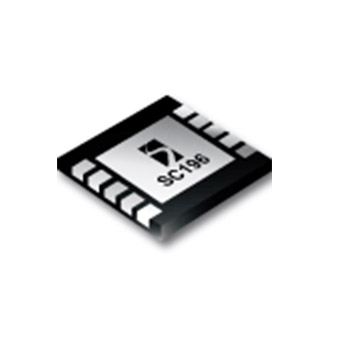

- Lead-free package — MLP10-UT, 3 x 3 x 0.6mm
- Cell phones
- Wireless communication chipset power
- Personal media player
- Microprocessor/DSP core/IO power
- PDAs and handheld computers
- WLAN peripherals
- USB powered modems
- 1 Li-Ion or 3 NiMH/NiCd powered devices
Applications
Packaging
- MLPD-10
Order Codes
- SC196ULTRT: Lead-Free, RoHS and WEEE Compliant, 3000 pcs.Tape & Reel
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC196
Part Description
1.5A SYNCHRONOUS BUCK CONVERTER WITH INTEGRATED POWER DEVICES
# of leads
10
Package Type
MLPD
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
