SC2442H
Product inactive. Information on this page is for reference only.
Features
- Dual output controller
- Asynchronous start-up mode
- Power-up sequencing to prevent latch-up
- Out-of-phase operation for low-input ripple
- Over-current protection
- Output down to 0.75 V
- Wide input range, 4.75 to 30V for SC2442 and 4.75 to 36V for SC2442H
- Vcc regulator with external PNP transistor
- Programmable clock frequency up to 1 MHz
- Two synchronous bucks for high efficiency at high current
- -40°C to +125°C operating temperature

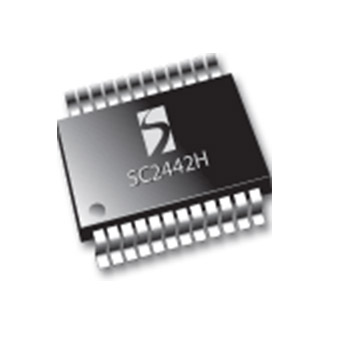

- Small TSSOP-24 package
- Fully WEEE and RoHS Compliant
- Point-of-load converter applications
- DSL applications with multiple output voltages
- Power management for mixed-signal applications
- Cable modems and set-top boxes
Applications
Packaging
- TSSOP-24
Order Codes
- SC2442HITSTR: Package Minimum Tape & Reel Only
- SC2442HITSTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
- SC2442ITSTR: Package Minimum Tape & Reel Only
- SC2442ITSTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
- SC2442H: SC2442H Evaluation Board
Datasheets & Documentation
mySemtech
Explore a wealth of downloadable resources and datasheets to assist with prototyping and production.
Looking for documentation?
Login or register for mySemtech to gain access to restricted product documentation and to add documents to your Watch List for update alerts
Distributor/Catalog Supplier Inventory
View product availability from participating distributors below. Browse all distributors here.
| Part # | Country | Qty | Buy | Distributor |
|---|
