Overview
The SC4508 is a low voltage current mode switching regulator controller that drives a P-channel power MOSFET with programmable switching frequency. It can be configured in either buck or buck boost (inverting) converters.

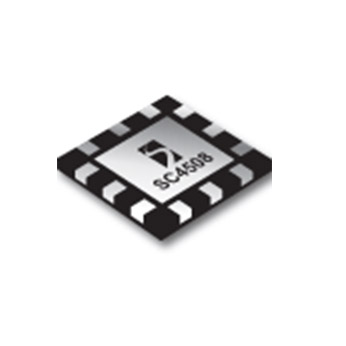

Packaging
- MLPQ-12
Order Codes
- SC4508IMLTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
PB Free/ROHS
Learn More →Features
- Wide input voltage range 2.7V to 15V
- Programmable output voltage
- Programmable switching frequency up to 1.5MHz
- Buck or buck boost(inverting) configuration
- Current mode control with slope compensation
- Very low quiescent current in shutdown mode
- Accessible reference voltage
- MLPQ-12 package
Documents | Release Date | Type | |
---|---|---|---|
SC4508 Datasheet | 2019-06-25 | ||
SC4508 Datasheet | 2018-12-13 |
Applications
- Low power point of use converters
- Single or multiple output low power converters
- Positive and/or negative output voltage
- DSL cards
- Graphic cards
- I/O cards
- Negative bias supplies
