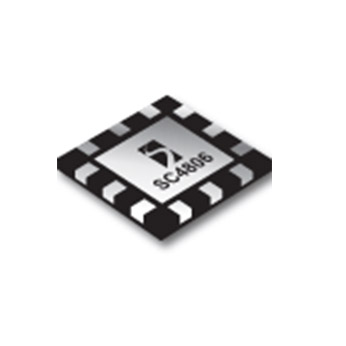

SC4806
Product inactive. Information on this page is for reference only.
The SC4806 is a double ended, high speed, highly integrated PWM controller optimized for applications requiring minimum space. The device is easily configurable for current mode or voltage mode operation and contains all the control circuitry required for isolated applications, where a secondary side error amplifier is used.
Features
- 90 µA starting current
- Pulse-by-pulse current limit for both voltage/current modes
- Programmable operating frequency up to 1MHz
- Programmable external soft start
- Programmable line undervoltage lockout
- Programmable external slope compensation
- Over current shutdown with separate pin
- Dual output drive stages on push-pull configuration
- Programmable mode of operation (peak current mode or voltage mode)
- External frequency synchronization
- Bi-phase mode of operation
- -40 to 105 °C operating temperature
- Lead free MLP-12 package, WEEE and RoHS compliant
- Telecom equipment and power supplies
- Networking power supplies
- Industrial power supplies
- Push-pull converter
- Half bridge converter
- Full bridge converter
- Isolated VRMs
Applications
Packaging
- MLPQ-12
Order Codes
- SC4806MLTRT: Lead-free, RoHS and WEEE compliant, 3000 pcs. Tape & Reel
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC4806
Part Description
MULTIPLE FUNCTION DOUBLE ENDED PWM CONTROLLER
# of leads
12
Package Type
MLPQ
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
Related Parts
SC4806MLTRT
