SC33020H

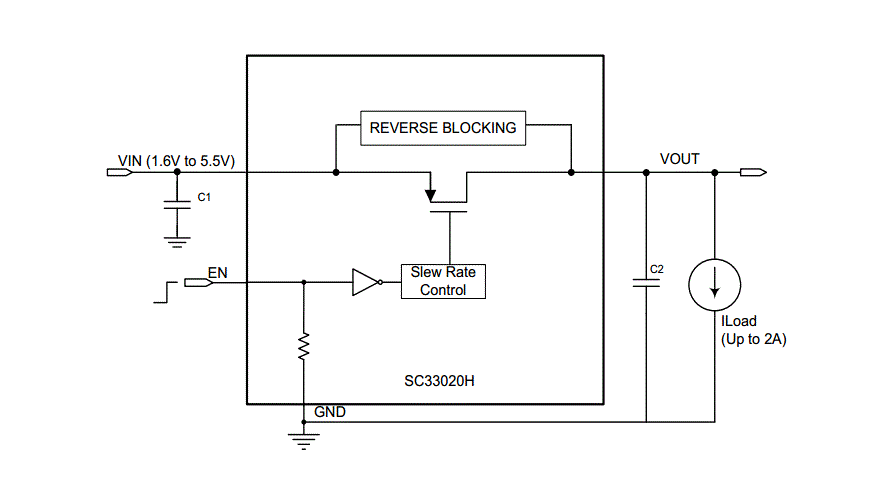

The SC33020H is an integrated 2A Load Switch with reverse current blocking. It operates from an .6V to 5.5V input supply. The SC33020H leaves the output node floating when the part is disabled.
Features
- Input Voltage Range – 1.6V to 5.5V
- 2A Continuous Output Current
- Ultra Low Ron – 32mohm
- Reverse Current Blocking
- Low Quiescent Current – 1μA
- Low Shutdown Current – 0.3µA
- Internal Soft Start
- Hardened ESD Protection 4kV

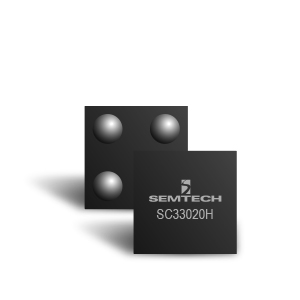

- Package: CSP – 0.9mm x 0.9mm 4-Bump
- Wearable Electronics
- Tablet PCs, eReaders
- Smartphones
- Notebook PCs, Ultrabooks
- Battery Powered Equipment
- Other Portable Devices
Applications
Packaging
- CSP 0.9mm x 0.9mm 4-bump
Order Codes
- SC33020HCSTRT: Lead-free package only. Device is WEEE and RoHS compliant, and halogen free
- SC33020HCSEVB: Lead-free package only. Device is WEEE and RoHS compliant, and halogen free
