EZ1585C
Product inactive. Information on this page is for reference only.
The EZ1585 series of high performance positive voltage regulators are designed for use in applications requiring low dropout performance at up to 4.6A. Additionally, theEZ1585 series provides excellent regulation over variations in line, load and temperature.
Features
- Low dropout voltage: 1.3 V max.
- Full current rating over line and temperature
- Fast transient response
- ± 2% total output regulation over line, load, and temperature
- Adjust pin current max. 90 µA over temperature

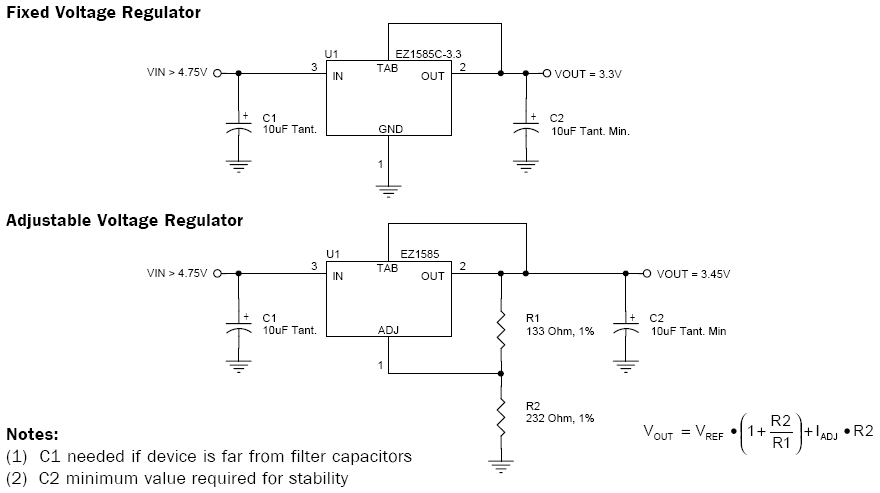

- Fixed/adjustable output voltage
- Line regulation typically 0.015%
- Load regulation typically 0.05%
- TO-220 and TO-263 packages
- Printer and plotter supplies
- Instrumentation
- Medical equipment
- Microcontroller systems
- Telecommunications systems
- Motherboards
- Switching supply post regulation
Applications
Packaging
- TO-263, TO-220
Order Codes
- EZ1585CM-1.5 TR: Package Minimum Tape & Reel Only
- EZ1585CM-1.5TRT: RoHS Compliant, Package Minimum Tape & Reel Only
- EZ1585CM-2.5 TR: Package Minimum Tape & Reel Only
- EZ1585CM-2.5TRT: RoHS Compliant, Package Minimum Tape & Reel Only
- EZ1585CM-3.3 TR: Package Minimum Tape & Reel Only
- EZ1585CM.TR: Package Minimum Tape & Reel Only
- EZ1585CM.TRT: RoHS Compliant, Package Minimum Tape & Reel Only
- EZ1585CT: $500.00 min.line Bulk (50 pcs.increments)
- EZ1585CT-1.5: $500.00 min.line Bulk (50 pcs.increments)
- EZ1585CT-2.5: $500.00 min.line Bulk (50 pcs.increments)
- EZ1585CT-3.3: $500.00 min.line Bulk (50 pcs.increments)
- EZ1585CT-3.3T: RoHS Compliant, $500.00 min.line Bulk (50 pcs.increments)
