SC1541
Product is not recommended for new design.

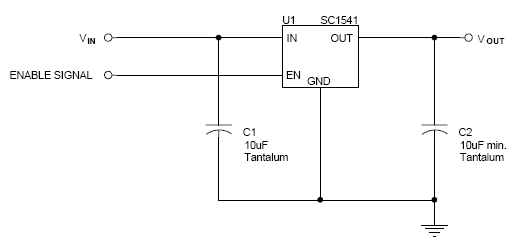

The SC1541 is a high performance low dropout positive voltage regulator designed for use in applications where power management is critical, such as battery powered systems.
Features
- Low-dropout performance, 1.3 V max
- Full current rating over line and temperature
- Fast transient response
- ± 2% total output regulation over line, load and temperature
- 10 µA max. quiescent current in shutdown
- Three fixed output voltages
- Line regulation 0.2% max.
- Load regulation 0.4% max.
- SO-8 and TO-263 packages
- Low-voltage microcontrollers
- Switching power supply post-regulation
- Instantly available circuits
- Motherboards
- Battery-operated equipment
Applications
Packaging
- SO-8
- TO263-5
Order Codes
- SC1541CM-1.8.TR (TO-263-5): Package Minimum Tape & Reel Only
- SC1541CM-2.5.TR (TO-263-5): Package Minimum Tape & Reel Only
- SC1541CM-3.3.TR (TO-263-5): Package Minimum Tape & Reel Only
- SC1541CM.1.8.TRT (TO-263-5): Halogen Free, and RoHS/WEEE compliant, Package Minimum Tape & Reel Only
- SC1541CM.2.5.TRT (TO-263-5): Halogen Free, and RoHS/WEEE compliant, Package Minimum Tape & Reel Only
- SC1541CM.3.3.TRT (TO-263-5): Halogen Free, and RoHS/WEEE compliant, Package
- SC1541CS-1.8.TR (SO-8): Package Minimum Tape & Reel Only
- SC1541CS-2.5.TR (SO-8): Package Minimum Tape & Reel Only
- SC1541CS-3.3.TR (SO-8): Package Minimum Tape & Reel Only
- SC1541CS.1.8.TRT (SO-8): Halogen Free, and RoHS/WEEE compliant, Package Minimum Tape & Reel Only
- SC1541CS.2.5.TRT (SO-8): Halogen Free, and RoHS/WEEE compliant, Package Minimum Tape & Reel Only
- SC1541CS.3.3.TRT (SO-8): Halogen Free, and RoHS/WEEE compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC1541
Part Description
1.0A LOW DROPOUT VOLTAGE REGULATOR WITH ENABLE
# of leads
8
Package Type
SOIC
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
