SC2738
Product is not recommended for new design.

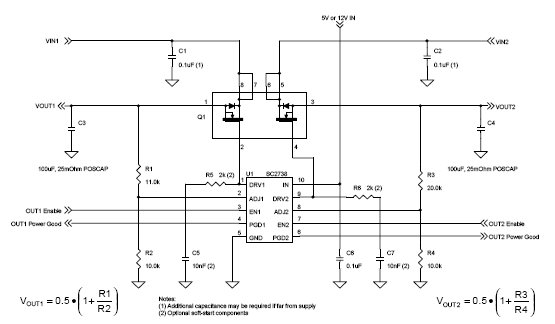

The SC2738 is an ultra low output voltage dual power supply controller designed to simplify power management for desktop PCs and graphics cards.
Features
- ± 3.5% reference voltage
- Two independent and fully adjustable outputs
- Wide supply voltage range permits operation from 5 V or 12 V rails
- Very low quiescent current (500 µA typical with both outputs enabled and 5 V input)
- Indivdual enable control for each output
- Individual power-good monitoring and signalling for each output
- Gate drives from input supply enable use of N-channel MOSFETs
- User-selectable dropout voltage
- Individual under-voltage protection for each output
- MSOP-10 surface-mount package
- Desktop PCs
- Graphics cards
- Simple dual power supplies
Applications
Packaging
- MSOP-10
Order Codes
- SC2738IMSTR: Package Minimum Tape & Reel Only
- SC2738IMSTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC2738
Part Description
ULTRA LOW OUTPUT VOLTAGE DUAL LINEAR FET CONTROLLER
# of leads
10
Package Type
MSOP
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
