SC4205
Product is not recommended for new design.
The SC4205 is a high performance positive voltage regulator designed for use in applications requiring very
low dropout voltage at up to 1 Amp.
Features
- 350mV dropout @ 1A

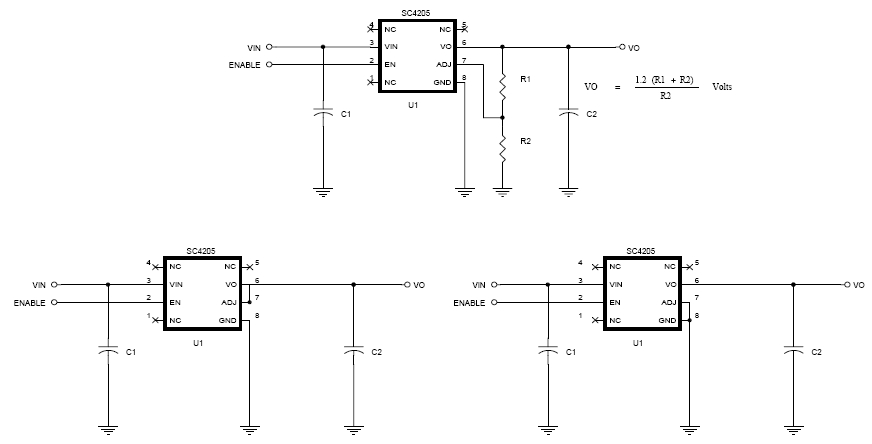

- Adjustable output from 1.2V to 4.8V
- 2.5V and 1.8V options (adjustable externally using resistors)
- Over current and over temperature protection
- Enable pin
- 10µA quiescent current in shutdown
- Low reverse leakage (output to input)
- Surface mount and through-hole packages
- Full industrial temperature range
- Available in SOIC-8EDP package
- Battery-powered systems
- Motherboards
- Peripheral cards
- Network cards
- Set-top boxes
- Medical equipment
- Notebook computers
Applications
Packaging
- SOIC-8 EDP
Order Codes
- SC4205IS-1.8TR: Package Minimum Tape & Reel Only
- SC4205IS-1.8TRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
- SC4205IS-2.5TR: Package Minimum Tape & Reel Only
- SC4205IS-2.5TRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC4205
Part Description
VERY LOW DROPOUT 1.5A 1.8V REGULATOR WITH ENABLE
# of leads
8
Package Type
SOIC
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
