SC561
Product inactive. Information on this page is for reference only.

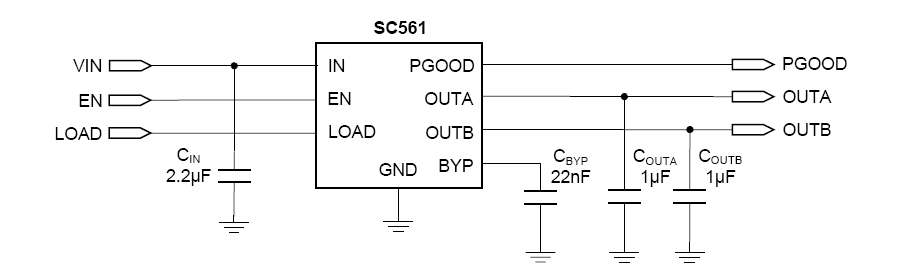

The SC561 is a dual output, ultra-low dropout linear voltage regulator designed for use in battery powered applications. The SC561 provides fi xed output voltages of VLDOA = 3.1V and VLDOB = 2.85V, and up to 300mA of load current per channel.
Features
- Input voltage range — 2.5V to 5.5V
- Output voltage — VLDOA = 3.1V; VLDOB = 2.85V
- Maximum output current — 300mA (each LDO)
- Dropout at 200mA load — 200mV max.
- Quiescent supply current — 40μA (both LDOs enabled)
- Shutdown current — 100nA (typ)
- Output noise < 50μVRMS
- PSRR >65dB at 1kHz
- Over-temperature protection
- Short-circuit protection
- Under-voltage lockout
- Power good monitor for output A
- MLPQ-UT8, 1.5mm x 1.5mm x 0.6mm package
- PDAs and cellular phones
- GPS devices
- Palmtop computers and handheld instruments
- TFT/LCD applications
- Wireless handsets
- Digital cordless phones and PCS phones
- Personal communicators
- Wireless LAN
Applications
Packaging
- MLPQ-UT8 (1.5x1.5)
Order Codes
- SC561ULTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape and Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC561
Part Description
DUAL OUTPUT LOW NOISE LDO LINEAR REGULATOR
# of leads
8
Package Type
MLPQ-UT
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
