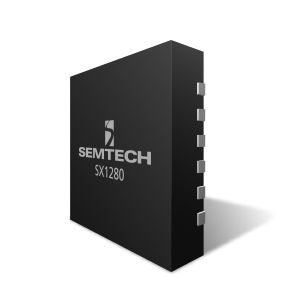

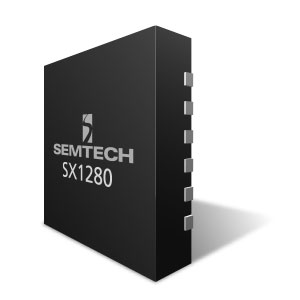

SX1280
The SX1280 transceiver provides ultra-long range communication in the 2.4GHz band with the linearity to withstand heavy interference. This makes them the ideal solution for robust and reliable wireless solutions.
Features
- Long Range 2.4GHz transceiver
- High sensitivity, down to -132dBm
- +12.5dBm, High efficiency PA
- Low energy consumption, On-chip DC-DC
- LoRa, FLRC, (G)FSK supported modulations
- Programmable bit rate
- Excellent blocking immunity
- Ranging Engine, Time-of-flight function
- BLE PHY layer compatibility
- Low system cost
- Home automation & appliances
- Tracking applications
- Wearables & sports/fitness sensors
- Radio-controlled toys & drones
- Smart watches & beacons
- Healthcare
Applications
Packaging

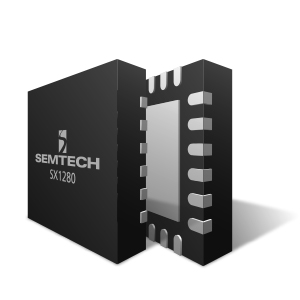

- QFN 4x4
Order Codes
- SX1280IMLTRT: Pb-free, Halogen free, RoHS and WEEE compliant, 3,000 pieces. Tape & Reel
Pb(Lead)-Free/RoHS-Green Info
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
Datasheets & Documentation
Application Notes
- AN1200.29: Introduction to Ranging with the SX1280
- AN1200.30: Wi-Fi Immunity of LoRa at 2.4 GHz
- AN1200.31: How to Perform Ranging Tests with the SX1280 Development Kit
- AN1200.41: Using the SX1280/SX1281 in Low Power Applications
- AN1200.44: Bluetooth Immunity of LoRa at 2.4 GHz
- AN1200.50: SX1280 Ranging Protocol
- AN1200.59: Selecting the Optimal Reference Clock
- AN1200.77: Optimizing Channel Activity Detect (CAD) on SX1280/81
- AN1200.80: LoRa® Modem Doppler Immunity
Additional Resources
Explore software downloads, documentation, recommended links, and more resources for this product.
Theory and principle of advanced ranging
DLP Design: DLP-RFS1280 2.4GHz LoRa transceiver module
Source code DevKit in C++
Source code PingPong in C++
SX1280RF1ZHP MBED webpage
