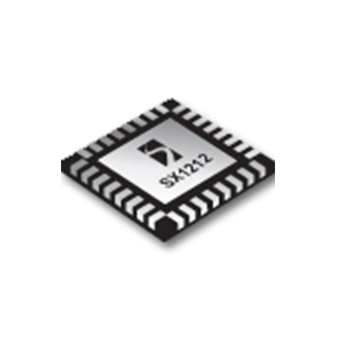

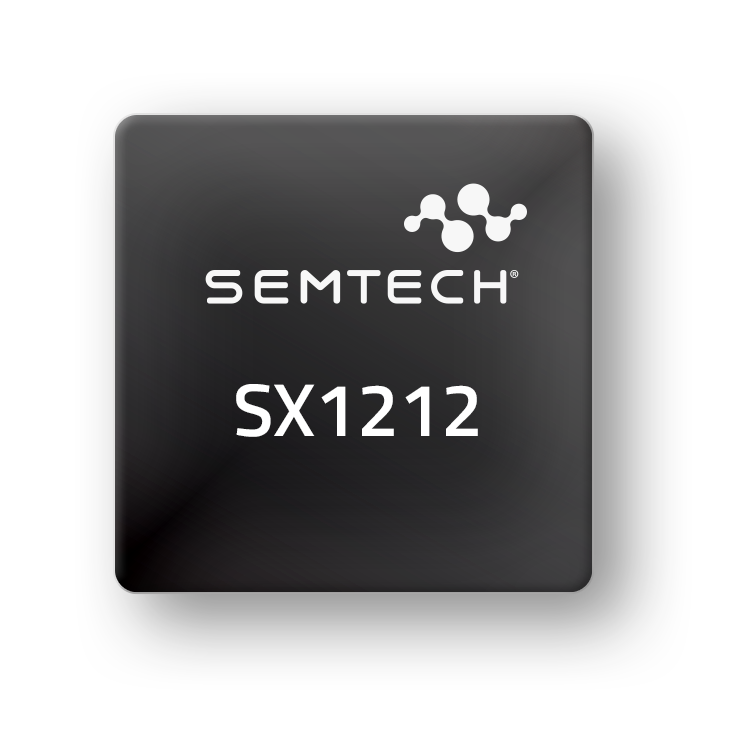

SX1212
The SX1212 is a low cost single-chip transceiver operating in the frequency ranges from 300MHz to 510MHz. The SX1212 is optimized for very low power consumption (3mA in receiver mode).
Features
- Low Rx power consumption: 3mA
- Low Tx power consumption: 25mA @ +10dBm
- Good reception sensitivity: down to -104dBm at 25kb/s in FSK, -110dBm at 2kb/s in OOK
- Programmable RF output power: up to +12.5dBm in 8 steps
- Packet handling feature with data whitening and automatic CRC generation
- RSSI (Received Signal Strength Indicator)
- Bit rates up to 150kb/s, NRZ coding
- On-chip frequency synthesizer
- FSK and OOK modulation
- Incoming sync word recognition
- Built-in Bit-Synchronizer for incoming data and clock synchronization and recovery
- 5 x 5mm TQFN package
- Optimized Circuit Configuration for Low-cost applications
- Wireless alarm and security systems
- Wireless sensor networks
- Automated Meter Reading
- Home and building automation
- Industrial monitoring and control
- Remote Wireless Control
- Active RFID PHY
Applications
Packaging
- TQFN32
Order Codes
- SX1212IWLTRT: Transceiver Ultra-Low Power Integrated 300-510MHz Transceiver
- SX1230-13RKEA433: Turnkey Remote Keyless Entry Reference Design Kit with SX1230 transmitter, SX1211 or SX1212 Transceiver, KEELOQ® code-hopping encryption software and Microchip’s PIC16F631 or PIC16F677 8-bit MCU
Pb(Lead)-Free/RoHS-Green Info
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
Datasheets & Documentation
Distributor/Catalog Supplier Inventory
View product availability from participating distributors below. Browse all distributors here.
| Part # | Country | Qty | Buy | Distributor |
|---|
