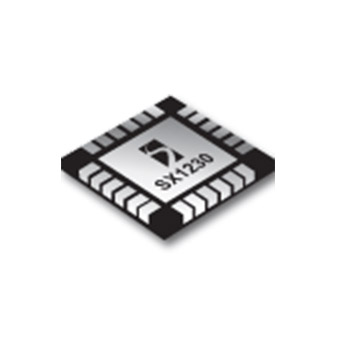

SX1230
The SX1230 is a fully integrated transmitter which can operate in the 315, 434, 868 and 915MHz licence free ISM bands.
Features
- +17dBm to -18dBm Programmable output power.
- Bit rates up to 600kbits / sec.
- FSK, GFSK, MSK, GMSK and OOK modulation.
- Stand-alone mode: No need for a host MCU.
- Consistent RF performance over a 1.8 to 3.7V range.
- Low phase noise (-95dBc/Hz at 50kHz) with automated PLL calibration and fully integrated VCO and loop filter.
- On chip RC timer for timer / wake-up applications.
- Low battery detection.
- Remote Keyless Entry (RKE)
- Remote Control / Security Systems
- Voice and Data RF Communication Links
- Process and building / home control
- Active RFID
- AMR / AMI Platforms
Applications
Order Codes
- SX1230I066TRT: LeadFree, WEEE and RoHS Compliant, 3000 pcs Tape and Reel
Pb(Lead)-Free/RoHS-Green Info
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
Datasheets & Documentation
Application Notes
- Calculating Radiated Power and Field Strength for Conducted Power Measurements
- FCC Part 15.247 Rules Systems Using Digital Modulation
- Improving the Accuracy of a Crystal Oscillator
- RF Design Guidelines: PCB Layout and Circuit Optimization
- XE8000 Driving XE1200 transceivers - Standard API definitions
Distributor/Catalog Supplier Inventory
View product availability from participating distributors below. Browse all distributors here.
| Part # | Country | Qty | Buy | Distributor |
|---|
