Overview

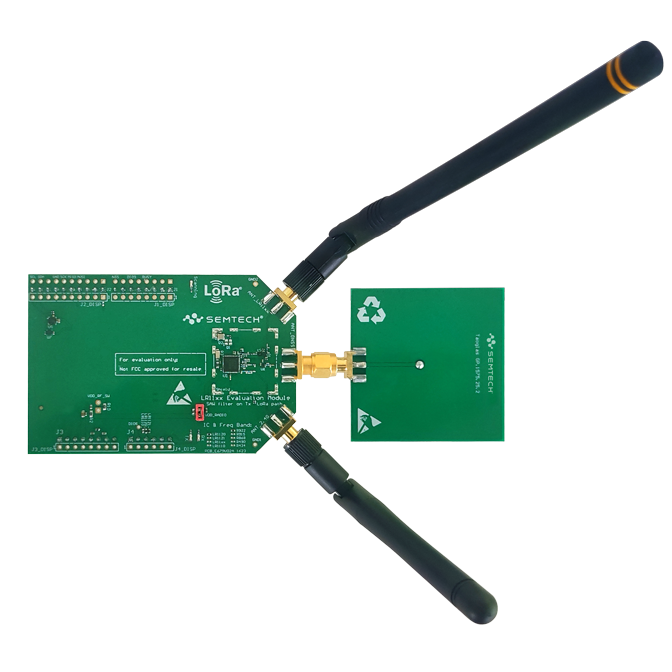

This development kit features Semtech's LoRa Edge™ LR1110 and is configured for the LoRa 923 MHz ISM band for Japan and Korea.
Features
- Based on LR1110
- PCB Layers: 4
- 32MHz Ref Clock: TCXO
- Region: Japan and Korea
- Frequency Bands: 923MHz
- Tx Out Power: 8dBm (subGHz)
- RF Matching: RF Switch
- Development Kit contains Single RF Module with Passive GNSS Antenna:
- Shield Part Number: LR1110MB1PIS
- PCB Version Number: E679V02A
Documents | Release Date | Type | |
---|---|---|---|
LR1110DVK1TPKS Design Files | 2023-12-16 | ZIP |
